Miscellaneous¶

MITIM can also be used to perform other tasks, such as:

Interpret Tokamak equilibrium ¶

MITIM has a quick g-eqdsk file reader and visualizer that is based on the megpy package.

To open and plot a g-eqdsk file:

from mitim_tools.gs_tools import GEQtools
g = GEQtools.MITIMgeqdsk(file)
g.plot()

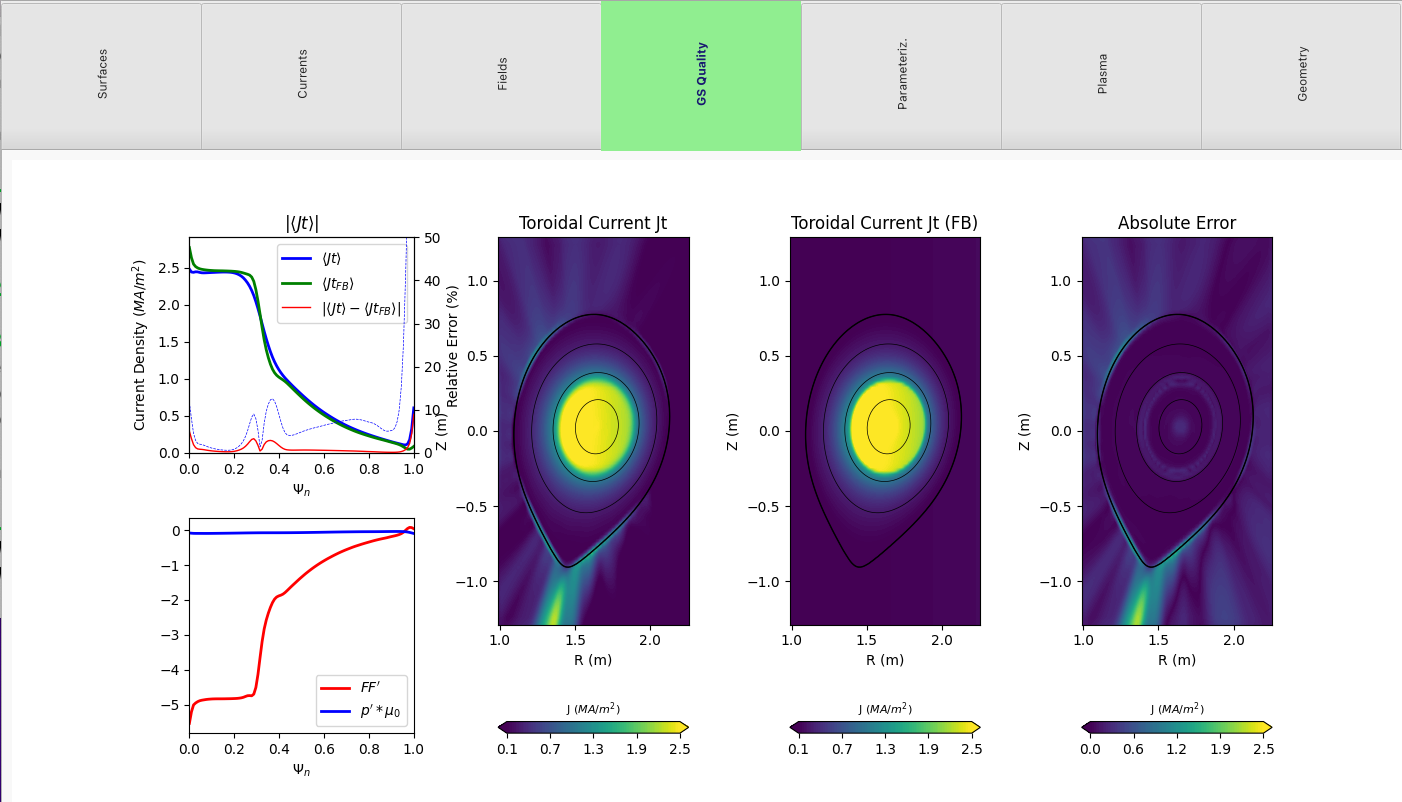

It will plot results in a notebook-like plot with different tabs:

Note that the same can be achieved with the following alias:

mitim_plot_eq eq_file.geqdsk

MITIM has a quick input.gacode file reader and visualizer.

To open and plot an input.gacode file:

from mitim_tools.gacode_tools import PROFILEStools
p = PROFILEStools.gacode_state(file)
p.plot()

It will plot results in a notebook-like plot with different tabs:

Note that the same can be achieved with the following alias:

mitim_plot_gacode input.gacode
