TGLF

MITIM can be used to run the TGLF model, interpret results, plot revelant quantities and perform scans and transport analyses. This framework does not provide linceses or support to run TGLF, therefore, please see Installation for information on how to get TGLF working and how to configure your setup.

Once setup has been successful, the following regression test should run smoothly:

python3 MITIM-fusion/tests/TGLF_workflow.py

Plot TGLF results

MITIM provides comprehensive utilities to interpret the results of TGLF simulations. As will be detailed in TGLF aliases, we can use the mitim_plot_tglf alias to plot TGLF results that exist in folder tglf_run/:

mitim_plot_tglf tglf_run/

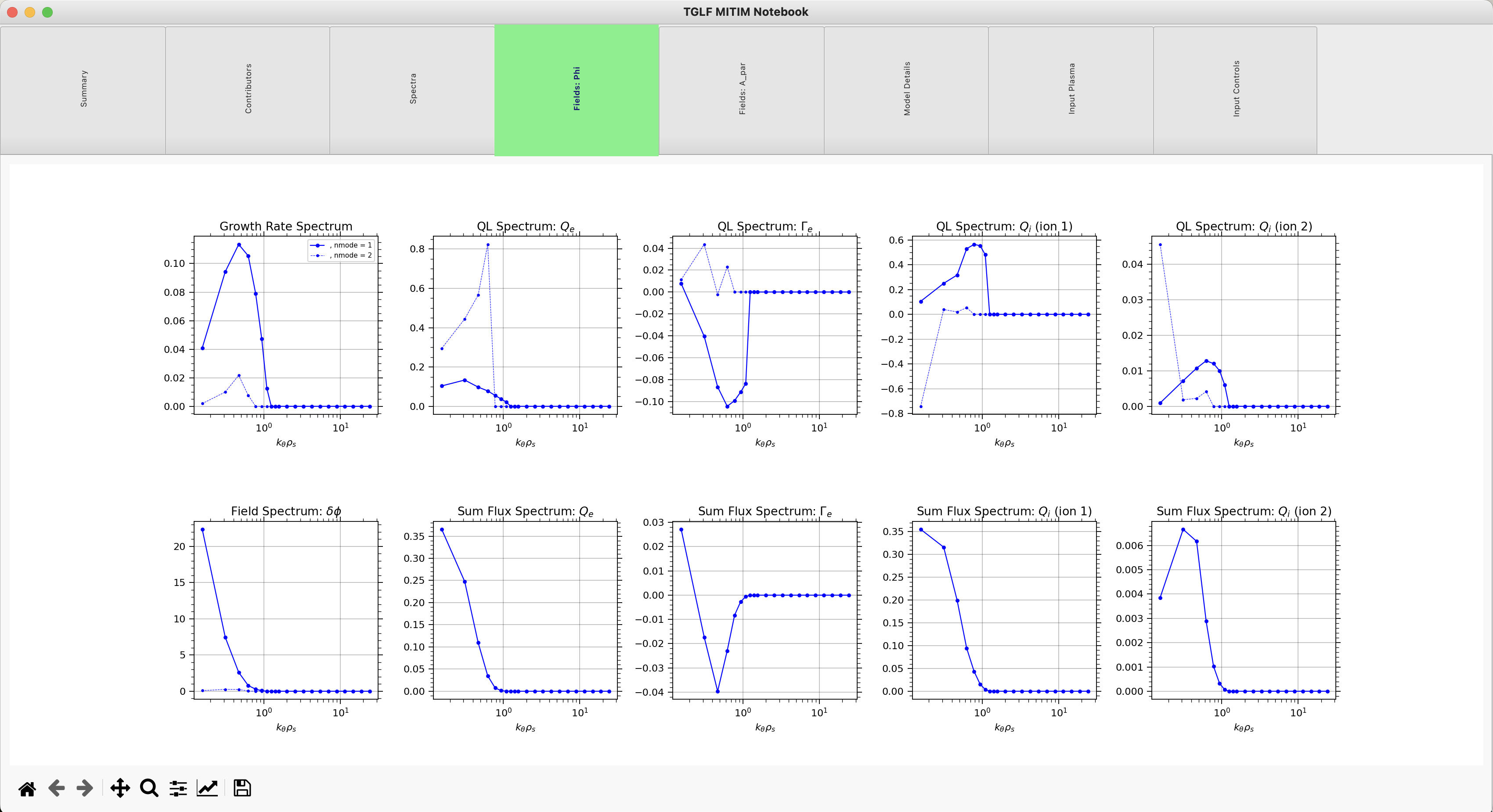

Running this will open an interactive python session and show a comprehensive notebook with all the relevant TGLF outputs:

The results can be accessed from the tglf.results dictionary.

Run TGLF from input.gacode

For this tutorial we will need the following modules:

from pathlib import Path
from mitim_tools.gacode_tools import TGLFtools

Select the location of the input.gacode file to start the simulation from. You should also select the folder where the simulation will be run:

inputgacode_file = Path('MITIM-fusion/tests/data/input.gacode')
folder           = Path('MITIM-fusion/tests/scratch/tglf_tut')

The TGLF class can be initialized by providing the radial location (in square root of normalized toroidal flux, rho) to run. Note that the values are given as a list, and several radial locations can be run at once:

tglf = TGLFtools.TGLF(rhos=[0.5, 0.7])

To generate the input files (input.tglf) to TGLF at each radial location, MITIM needs to run a few commands to correctly map the quantities in the input.gacode file to the ones required by TGLF. This is done automatically with the prep() command. Note that MITIM has a only-run-if-needed philosophy and if it finds that the input files to TGLF already exist in the working folder, the preparation method will not run any command, unless a cold_start = True argument is provided.

cdf = tglf.prep(folder,inputgacode=inputgacode_file,cold_start=False )

Tip

The .prep() method, when applied to a case that starts with an input.gacode file, launches a TGYRO run for a “zero” iteration to generate input.tglf at specific rho locations from the input.gacode. This method to generate input files is inspired by how the OMFIT framework works.

Now, we are ready to run TGLF. Once the prep() command has finished, one can run TGLF with different settings and assumptions. That is why, at this point, a sub-folder name for this specific run can be provided. Similarly to the prep() command, a cold_start flag can be provided. The set of control inputs to TGLF (like saturation rule, electromagnetic effects, etc.) are provided in two ways. First, the argument TGLFsettings indicates the base case to start with. The user is referred to templates/input.tglf.models.json to understand the meaning of each setting, and templates/input.tglf.controls for the default setup. Second, the argument extraOptions can be passed as a dictionary of variables to change. For example, the following two commands will run TGLF with saturation rule number 2 with and without electromagnetic effets. After each run() command, a read() is needed, to populate the tglf.results dictionary with the TGLF outputs (label refers to the dictionary key for each run):

tglf.run( subFolderTGLF = 'yes_em_folder',
          TGLFsettings  = 5,
          extraOptions  = {},
          cold_start       = False )

tglf.read( label = 'yes_em' )

tglf.run( subFolderTGLF = 'no_em_folder',
          TGLFsettings  = 5,
          extraOptions  = {'USE_BPER':False},
          cold_start       = False )

tglf.read( label = 'no_em' )

Tip

In this example, tglf.results['yes_em'] and tglf.results['no_em'] are themselves dictionaries, so please do .keys() to get all the possible results that have been obtained.

TGLF results can be plotted together by indicating what labels to plot:

tglf.plot( labels = ['yes_em', 'no_em'] )

As a result, a TGLF notebook with different tabs will be opened with all relevant output quantities:

Run TGLF from TRANSP results file

If instead of an input.gacode, you have a TRANSP .CDF file (cdf_file) and want to run TGLF at a specific time (time) with an +- averaging time window (avTime), you must initialize the TGLF class as follows:

from pathlib import Path
from mitim_tools.gacode_tools import TGLFtools

cdf_file = Path('MITIM-fusion/tests/data/12345.CDF')
folder   = Path('MITIM-fusion/tests/scratch/tglf_tut')

tglf     = TGLFtools.TGLF(  cdf    = cdf_file,
                            rhos   = [0.5,0.7],
                            time   = 2.5,
                            avTime = 0.02 )

Similarly as in the previous section, you need to run the prep() command, but this time you do not need to provide the input.gacode file:

cdf = tglf.prep(folder,cold_start=False)

Note

The .prep() method, when applied to a case that starts from a TRANSP .CDF file, now performs two extra operations:

• TRXPL (https://w3.pppl.gov/~hammett/work/GS2/docs/trxpl.txt) to generate plasmastate.cdf and .geq files for a specific time-slice from the TRANSP outputs.

• PROFILES_GEN to generate an input.gacode file from the plasmastate.cdf and .geq files. This file is standard within the GACODE suite and contains all plasma information that is required to run core transport codes.

The rest of the workflow is identical to the previous section, including .run(), .read() and .plot().

Run TGLF from input.tglf file

If you have a input.tglf file already, you can still use this script to run it.

from pathlib import Path
from mitim_tools.gacode_tools import TGLFtools

inputgacode_file = Path('MITIM-fusion/tests/data/input.gacode')
folder           = Path('MITIM-fusion/tests/scratch/tglf_tut')
inputtglf_file   = Path('MITIM-fusion/tests/data/input.tglf')

tglf = TGLFtools.TGLF()
tglf.prep_from_tglf( folder, inputtglf_file, input_gacode = inputgacode_file )

The rest of the workflow is identical, including .run(), .read() and .plot().

Tip

The provision of an input.gacode file as in the example above is not necessary. However, if no input.gacode file is provided, MITIM will not be able to unnormalize the TGLF results.

Tip

Once the TGLF class has been prepared, if the results exist already in the folder, .run() is not needed and results can be read and plotted:

from pathlib import Path
from mitim_tools.gacode_tools import TGLFtools

folder           = Path('MITIM-fusion/tests/scratch/tglf_tut/yes_em_folder')
inputtglf_file   = Path('MITIM-fusion/tests/data/input.tglf')

tglf = TGLFtools.TGLF()
tglf.prep_from_tglf( folder, inputtglf_file )
tglf.read (folder = f'{folder}/', label = 'yes_em' )
tglf.plot( labels = ['yes_em'] )

Please note that the previous code will only work is TGLF was run using MITIM. This is because MITIM stores the results with a suffix that indicates the radial location (rho) where the run was performed.

If you want to read results from a TGLF run that was not performed with MITIM, you can provide the suffix specification to the .read() method, including None:

tglf.read (folder = f'{folder}/', suffix = None, label = 'yes_em' )

Run 1D scans of TGLF input parameter

Under Development

(In the meantime, please checkout tutorials/TGLF_tutorial.py )

TGLF aliases

MITIM provides a few useful aliases, including for the TGLF tools:

• To plot results that exist in a folder run1/, with or without a suffix and with or without an input.gacode file (for normalizations):

  mitim_plot_tglf run1/
  mitim_plot_tglf run1/ --suffix _0.55 --gacode input.gacode


• To run TGLF in a folder run1/ using input file input.tglf, with or without an input.gacode file (for normalizations):

  mitim_run_tglf --folder run1/ --tglf input.tglf
  mitim_run_tglf --folder run1/ --tglf input.tglf --gacode input.gacode


• To run a parameter scan in a folder scan1/ using input file input.tglf, with or without an input.gacode file (for normalizations):

  mitim_run_tglf --folder scan1/ --tglf input.tglf --gacode input.gacode --scan RLTS_2
